32-Port 12G SDI Matrix Switcher with Interchangeable Inputs and Outputs

Product Description

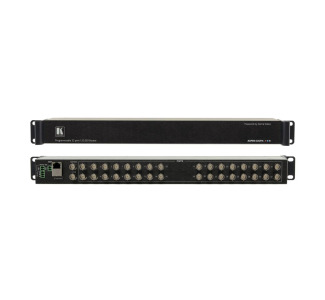

ASPEN-32UFX is a 32-port matrix switcher for SDI signals of up to 12G SDI. Each SDI port can be defined as either an input or output, enabling flexible configurations such as a 1x31 distribution amplifier, 31x1 switcher, 16x16 matrix switcher or any other possible input-output combination. ASPEN-32UFX is easy to operate and control through the network using the intuitive web pages and through RS-232 using a serial controller.

• Maximum Data Rate - 12Gbps
• HDTV Compatible
• Multi-Standard Operation - 12G-SDI - SMPTE ST-2082-1, 3G-SDI - SMPTE 424M, HD-SDI - SMPTE 292M, SDI - SMPTE 259M/344M
• Kramer Equalization and re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances
• Supports ANC Data - Embedded audio, teletext, time code, etc
• Cable Equalization - Up to 300m for SD signals, 200m for 1.5G HD signals, 100m for 3G and 6G signals, and 80m for 12G signals
• Clean Switching - When the sources are genlocked to the selected genlock input with a difference of no more than two lines of video
• Versatile Genlocking - Using an analog signal
• Memory Locations - Stores 8 multiple switches as presets to be recalled and executed when needed
• Included:
• Power adapter
• Cables (Recommended): Belden 4794R and 4855R 12G-SDI coax cables
