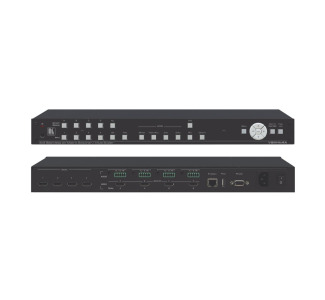

4 x 4 Seamless AV Matrix Switcher/Multi-Scaler

Product Description

VSM-4x4A is a 4x4 seamless matrix switcher that can also be used as a video wall driver (2x2 or 1x4) or dual and quad multi-viewers. The unit allows switching between inputs with a clean video cut (frame-to-frame switching with no glitches). It supports HDMI resolutions with deep color, up to eight channels of audio and includes per-port HDCP and EDID settings.

• PixPerfect™ Scaling Technology - Kramers precision pixel mapping and high-quality scaling technology
• HDTV Compatible
• HDCP Compliant
• 4 HDMI Inputs and 4 Scaled HDMI outputs
• Audio - 4 balanced and 4 unbalanced audio outputs with independent volume settings per output, embedded audio on the HDMI inputs and outputs
• Selectable operation modes - seamless matrix switcher (seamless or independent setup), video wall (2x2 or 1x4 configuration), dual display (Split/PIP/POP) or quad display
• Bezel correction options - in video wall mode
• Independent switching mode - allows for separate output resolutions. Input switching via clean, fade-through-black transitions (outputs retaining constant sync).
• HDMI support - Deep Color, Dolby Digital Plus, DTS, DTS-HD®, LPCM 2CH/6CH/8CH, AC3
• Per port HDCP and EDID settings
• Input resolution range - VGA to WUXGA and 480i to 1080p
• Output resolution range - 480p to 1080p
• Multiple aspect ratio selections - full, 4:3, 16:9 and best fit
• Built-in ProcAmp - color, hue, sharpness, noise, contrast and brightness
• Front panel control - operation mode, TAKE button and menu buttons
• 4 Preset memory locations - for each operation mode for quick access to common IN-OUT configurations
• Front panel lockout
• Non-volatile memory - saves final settings
• Additional internal memory - supports larger firmware code
• Firmware upgrade - via ethernet or via the program mini USB connector
• Varied control options - front panel buttons, RS-232 serial commands transmitted by a touch screen system
• PC, or other serial controller, remotely, from the infrared remote control transmitter with OSD (on-screen display), via the Ethernet with built-in Web pages
• Applications:
• Conference room presentations
• Advertising applications, shopping malls and museums
• Post production applications
• Rental and staging
• Security applications
• Video-wall scaling
• Applications with multiple inputs and outputs
• Applications where quick, sleek, seamless switching is required
• Any application requiring 4 scalers in a single 1RU rack space
