4K Auto-Switcher/Scaler Kit over Long-Reach HDBaseT

Product Description

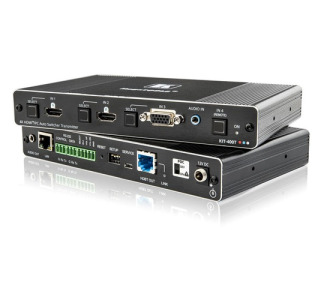

KIT-400 is a high-performance auto-switcher/scaler kit for 4K HDMI™ and VGA over long-reach HDBaseT. The kit includes the KIT-400T transmitter/switcher and the KIT-400R receiver/scaler. The KIT-400T transmitter converts the user-selected input signal into the transmitted HDBaseT signal. The KIT-400R receiver receives the HDBaseT signal, converts it to HDMI and up- or down-scales the picture to match the resolution of the HDMI monitor. KIT-400 extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K at 60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

• Simple and Powerful Maestro Room Automation - Intuitive user interface enables you to fully automate your meeting room elements.
• HDMI Signal Extension - HDCP 1.4 / 2.2. 4K60, CEC, xvYCC color (on input).
• PoC (Power over Cable) Enabled - Choose to power only one of the units and power the other unit of the receiver/transmitter pair over the HDBaseT extension.
• Local Switching Control of 3 Local and 1 Remote Source - Select from 4 sources, each with a dedicated selector button on the transmitter front panel, to output to an HDMI display: 2 HDMI inputs and 1 VGA input, with dedicated audio jack, on the transmitt
• Audio De-embedding - Output the HDMI audio to a balanced stereo output on the receiver side, and an unbalanced stereo output on the transmitter side.
• Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
• I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation.
• Easy Remote Device Control - Control devices connected to KIT-400 from the user-friendly Kramer Aware interface on the KIT-400 embedded webpages. You can also access the interface using the Kramer Aware app on a compatible Kramer touch panel.
• Convenient Unit Control and Configuration Options - Local control via front panel source and output switching buttons, DIP-switches for configuring connection priority, and OSD menu. Distance control via user-friendly embedded web pages via Ethernet, Pro
• Easy, Cost-effective Maintenance - Local firmware upgrade via USB connector.
• Easy and Elegant Installation - Single cable connectivity for both HDBaseT signals and power. Compact MegaTOOLS™ fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapte
• Application:
• Classrooms and lecture halls
• Meeting rooms
• Training facilities
• Collaborative classrooms
• Any space where BYOD support is required
