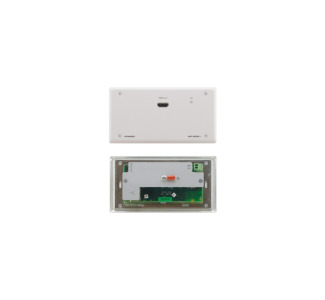

HDMI over Extended Range HDBaseT Twisted Pair Receiver Decora-style Active Wallplate, White
CAMCOR ITEM NO. 384055638 | MFG. PART NO. WP-580RXR/US/D(W)
Product Highlights
The WP-580RXR is an extended range, HDBaseT twisted pair wall plate receiver for HDMI signals. The WP-580RXR receives an HDBaseT twisted pair signal from the WP-580TXR and converts it back into HDMI ... More
Is This Item Right For Me? - Ask Our Experts
California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.
The WP-580RXR is an extended range, HDBaseT twisted pair wall plate receiver for HDMI signals. The WP-580RXR receives an HDBaseT twisted pair signal from the WP-580TXR and converts it back into HDMI signals.
Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel) in normal mode; 4.95Gbps (1.65Gbps per graphic channel) in ultra mode.
HDTV Compatible.
HDCP Compliance.
HDBaseT™ Technology.
HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC.
3D Pass-Through.
EDID PassThru - Passes EDID signals between the source and display.
2K & 4K Support in Normal Mode.
System Range - Up to 130m (430ft) normal mode; up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC-HDKat6a cables
Cable - For optimum range and performance using HDBaseT™, use Kramer's BC-HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non-Kramer CAT 6 cable may not reach these ranges
Indicators - Status LEDs for input, output, link and power.
Size - Wall Plate - 2 gang European or US.
<b> Applications:</b><ul>
Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios.</ul>
