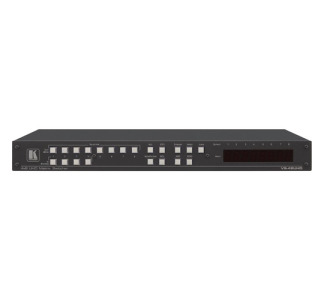

Kramer VS-48UHD 4x8 4K60 4:2:0 Matrix Switcher

Product Description

VS-48UHD is a high-quality 4x8 matrix switcher for 4K@60Hz (4:2:0) HDMI signals and embedded audio. It reclocks and equalizes the signals and can route any one of four HDMI, HDCP-compliant sources (selectable) to any or all outputs simultaneously. VS-48UHD offers a flexible audio scheme where any HDMI digital audio input can be routed to any HDMI digital audio output in addition to ARC support to produce an equivalent 12x10 audio matrix.

• Max. Data Rate - 8.91Gbps data rate (2.97Gbps per graphics channel).
• Max. Resolution - 4K@60Hz (4:2:0).
• Independent 12x10 Audio Matrix - With 4 embedded digital inputs + 8 ARC inputs and 8 digital outputs + 2 ARC outputs.
• Kramer Step-In Over HDMI Technology.
• HDMI, HDCP and DVI Compliance.
• Selectable HDCP Off per Input.
• Memory Locations - 12 presets for quick access to common configurations.
• Advanced EDID Management per Input.
• Active Source & Acceptor Detection.
• Automatic Input Selection - Based on priority selection or last connected input.
• Firmware Upgrade - Via mini USB, Ethernet or the RS-232 port.
• HDMI Support - Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels.
• Kramer reKlocking™ and Equalization Technology - Rebuilds the digital signal to travel longer distances.
• Embedded Pattern Generator - With selectable patterns.
• Lock Button - To prevent tampering.
• Kramer Protocol 3000 Support.
• Control Options - RS-232 serial commands transmitted by a PC, touch screen system or other serial controller, Ethernet port via LAN, embedded Web pages via LAN for configuration and control.
• Size - Standard 19" (1U). Rack "ears" included.

APPLICATIONS

• Control rooms with multiple displays
• Presentation and multimedia applications
• Systems that require automatic HDMI routing
